Designed for very accurate profile grinding with auto dressing compensation

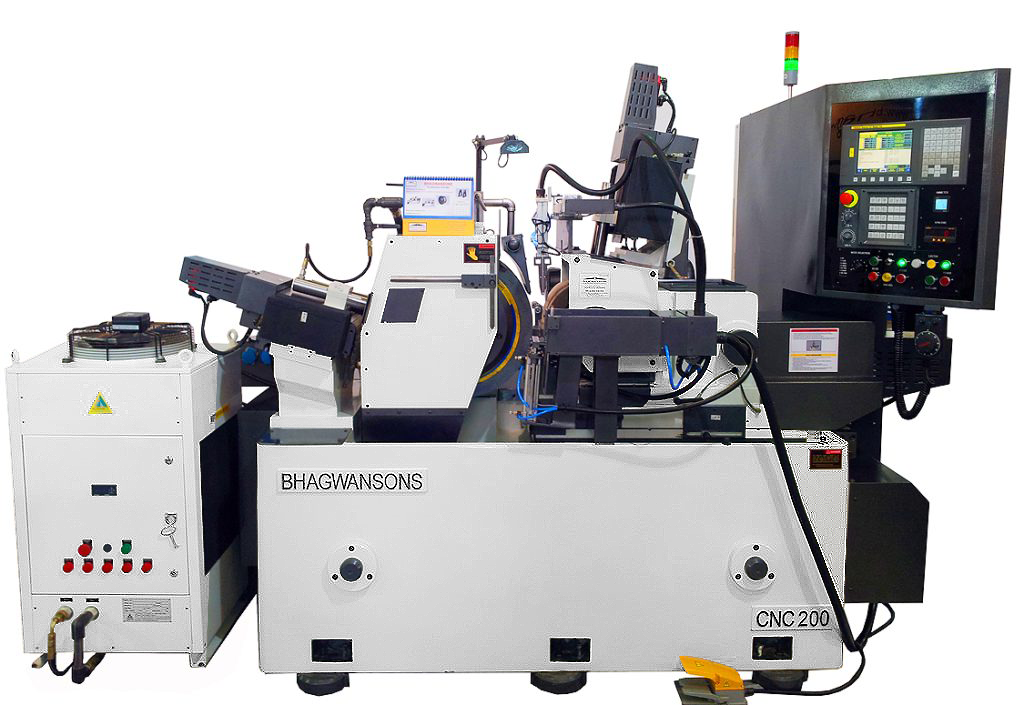

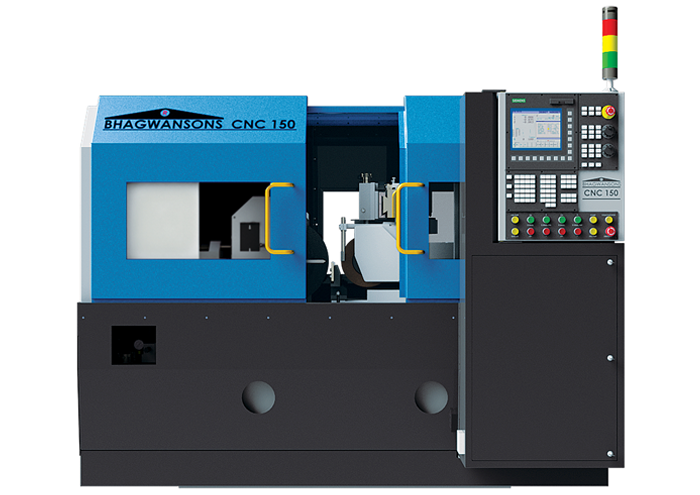

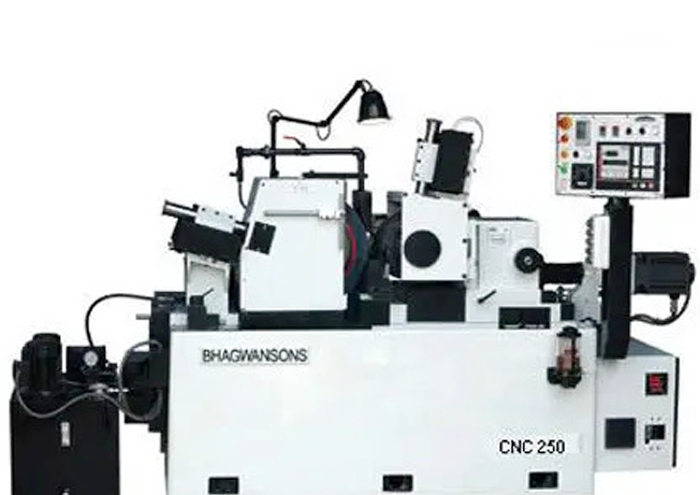

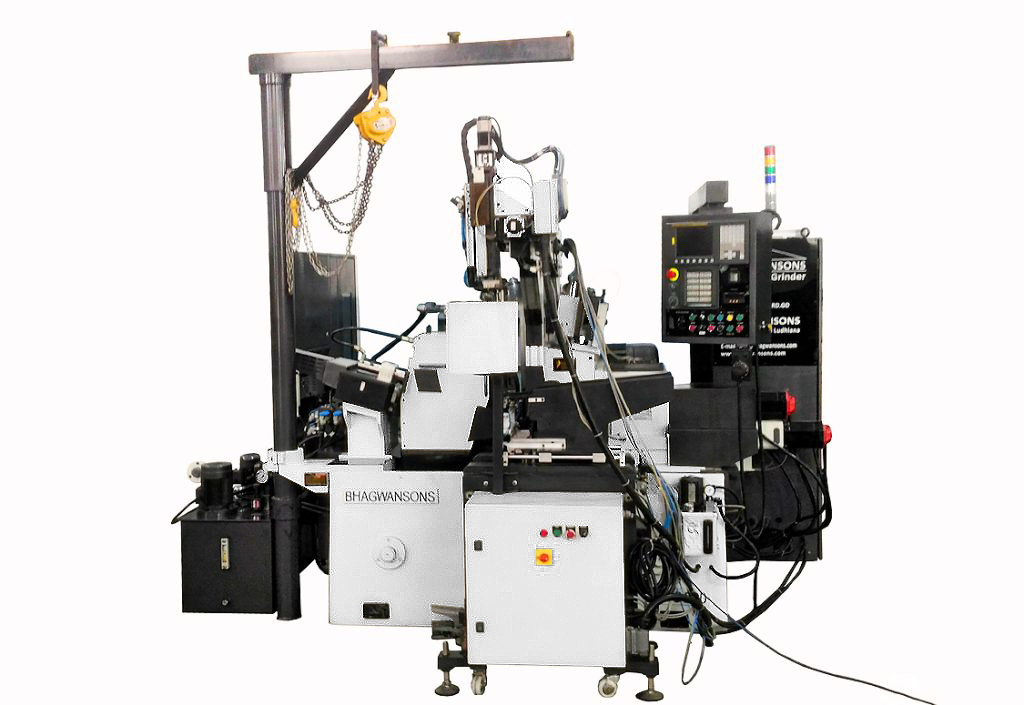

CNC Centerless Grinding Machines-200
Specification of CNC Centerless Grinder Machines-200
|
SPECIFICATIONS
|
CNC-250
|
CNC-200
|
CNC-150
|
CNC-100 |
|
| Grinding Capacity | Diameter (mm) | 2-125 | 2-125 | 1-100 | Jan-75 |
| WidthInfeed (mm) | 250 | 200 | 150 | 100 | |
| Grinding Wheel | Diameter (mm) | 500 | 500 | 400 | 350 |
| Width (mm) | 254 | 200 | 150 | 100 | |
| Bore (mm) | 304.8 | 304.8 | 203.2 | 152 | |
| Speed with VFD | 33 m/s | 33 m/s | 33 m/s | 33 m/s | |
| Regulating Wheel | Diameter (mm) | 305 | 300 | 250 | 225 |
| Width (mm) | 254 | 200 | 150 | 100 | |
| Bore (mm) | 127 | 127 | 110 | 76 | |
| Speed RPM-VFD | 15-250 | 15-250 | 20-250 | 20-250 | |
| Speed-Servo Drive | 10-300 | 10-300 | 15-300 | 15-300 | |
| Tilting Angle | +6°-3° | +6°-3° | +5°-3° | +5°-3° | |
| Swivelling Angle | +1° | +1° | +1° | 0° | |
| Power Requirements | Grinding Wheel Motor | 18.75 KW | 15.0 KW | 7.5 KW | 7.5 KW |
| 415Volts, 50Hz, Ac | Regulating Wheel Motor | 2.2 KW | 2.2 KW | 1.5 KW | 1.5 KW |
| Coolant Pump Motor | 0.37 KW | 0.37 KW | 0.18 KW | 0.12 KW | |
| Lubrication Pump | 0.18 KW | 0.18 KW | 0.18 KW | 0.18 KW | |
| Hydraulic Unit Motor | 0.75 KW | 0.75 KW | 0.75 KW | 0.75KW | |
| Dimensions & Weight | Length (mm) | 3010 | 3010 | 2410 | 2350 |
| Width (mm) | 1750 | 1700 | 1360 | 1320 | |
| Height (mm) | 1900 | 1900 | 1655 | 1650 | |
| Net Weight Approx(Kgs) | 5300 | 5000 | 2400 | 1900 | |
Salient Features
- Rigid, stable and naturally seasoned meehanite casting machine bed.
- Precision guide ways and ball screws for each CNC axis.
- Grinding wheel head with precision roller/hydro dynamic bearings and with constant peripheral speed.
- Regulating wheel head with precision roller/bush bearings and with VFD/servo drive.
- Air cooler for hydraulic oil.
- Highly accurate CNC profile dressing slides.
- Swift, easy setup and wheel change over.
- Eco friendly, easy to operate, ergonomically designed to fit today’s requirement of quality, precision and production.
- Available from single axis to six axes.
